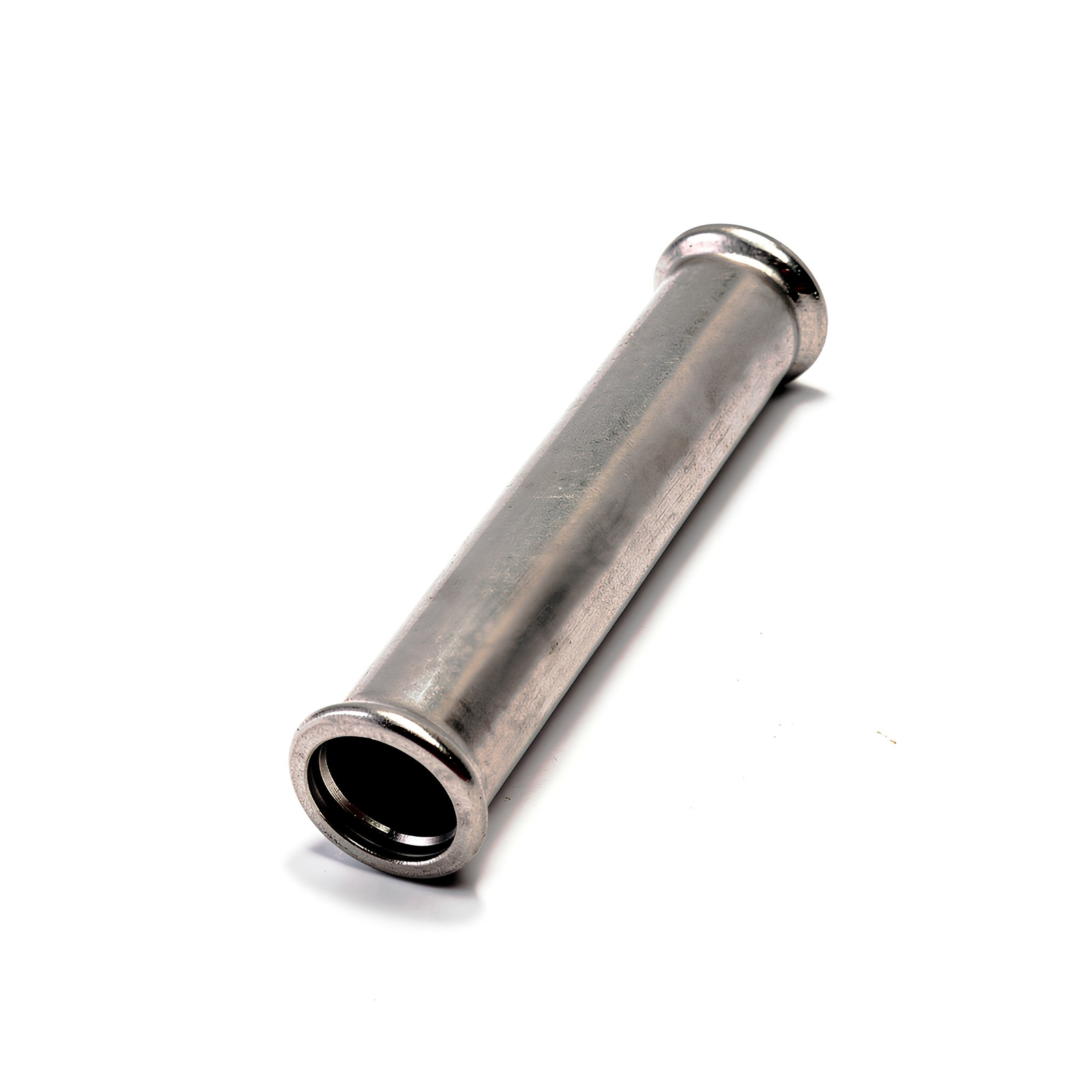

Stainless Steel Slip Coupling – Product Specification
Product Specification
**EN Standard Compliant** – Engineered for Durability in Fitting Systems.

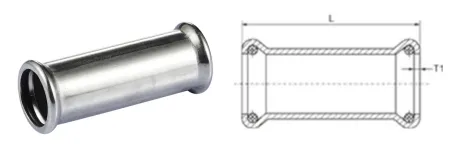

Dimensional Specifications (OD / THK / L)
| OD (mm) | THK (mm) | L (mm) |
|---|---|---|
| 15 | 1.50 | 82 |
| 18 | 1.50 | 84 |
| 22 | 1.50 | 87 |
| 28 | 1.50 | 98 |
| 35 | 1.50 | 107 |
| 42 | 1.50 | 122 |
| 54 | 1.50 | 140 |
| 76.1 | 2.00 | 230 |
| 88.9 | 2.00 | 258 |
| 108 | 2.00 | 305 |
Advantages of Fittings
- **Easy Assembly**: Practical and convenient (**efficient installation in seconds**).
- **Quick Installation**: Saves hours of labour, ideal for large projects.
- **Safe and Approved**: Guaranteed system with certifications.
- **Simplified Labour**: No need for specialised personnel (just a press tool).
- **Flameless Connection**: Enhances safety by eliminating the need for naked flames.
O-Ring Material Characteristics and Application
The **rubber O-ring** is crucial for the sealing and sanitary performance. Aquinox O-rings use **imported rubber materials**, processed under standard vulcanization conditions and comply strictly with **GB/T 19228.3-2012**. Drinking water O-rings meet the **GB/T17219** standard, with **EU DVGW standard** options available. They resist hot water, ageing, and common drinking-water additives.
O-Ring Compatibility Chart:
| Material | Color | Temperature Range | Max. Working Pressure (MPa) | Application |
|---|---|---|---|---|
| EPDM | Black | -40°C – 150°C | 2.5 | Hot & Cold Water, Drinking Water System |
| SI | White | -20°C – 200°C | 2.5 | Hot & Cold Water, Drinking Water System |
| SI (Import) | Claret | -20°C – 200°C | 2.5 | Fire, Steam, Solar |
| NBR | Yellow | -30°C – 120°C | 2.5 | Gas & Oil |
| HNBR | Green | -30°C – 180°C | 2.5 | Gas |
| FKM | Brown | -30°C – 250°C | 2.5 | Industrial & Chemical |
