Stainless Steel Pipe Bridge with Plain End

Stainless Steel Pipe Bridge with Plain End

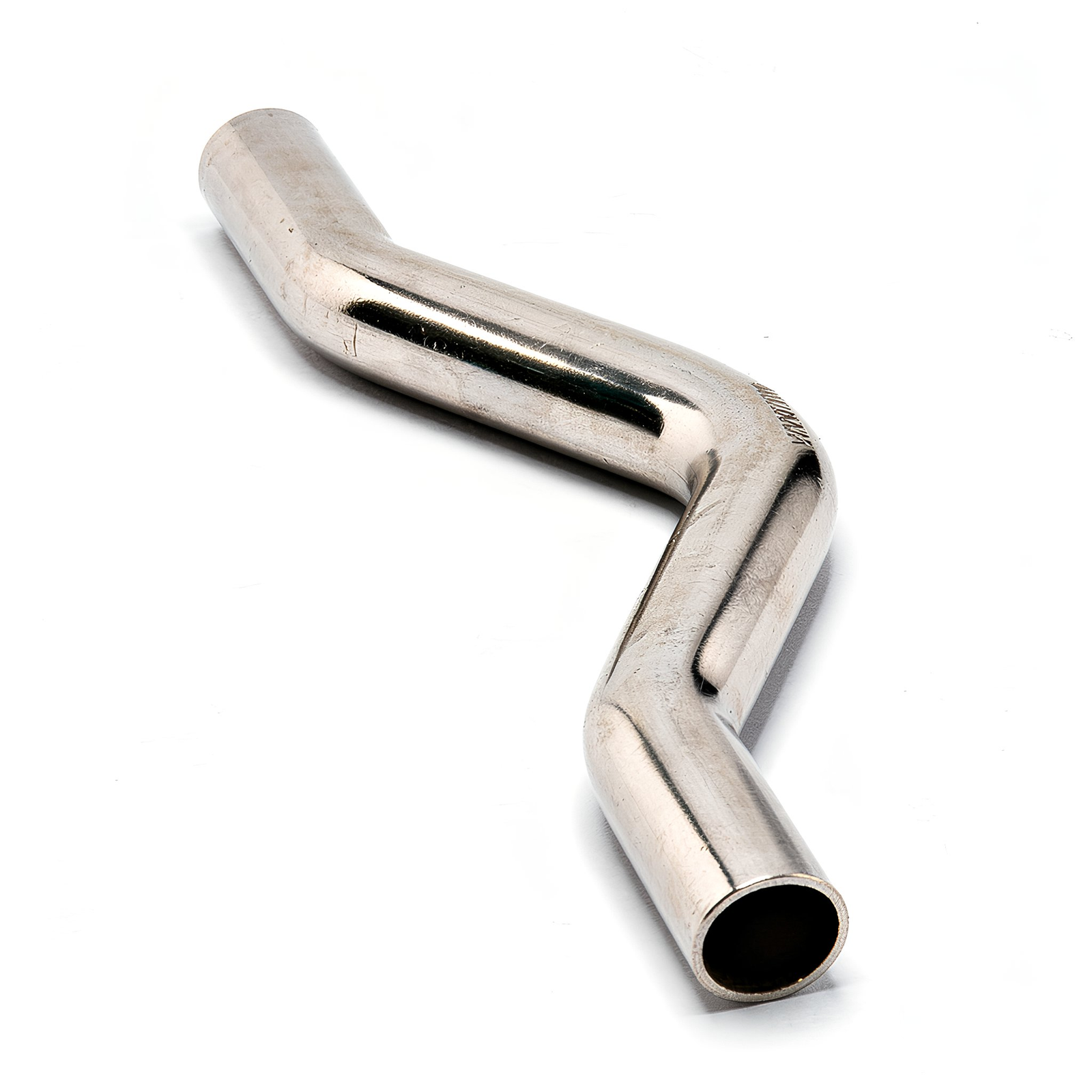

Stainless Steel Pipe Bridge with Plain End is, as its name implies, a stainless steel pipe component with a “bridge” configuration and plain-end design. It is mainly used for connecting, redirecting, or transitioning between different pipelines in fluid or gas transmission systems, which enables more efficient pipe routing in confined spaces and reduces the need for additional elbows. Its key features include a smooth flow path and ease of connection, thereby enhancing installation efficiency and aesthetics. Given the inherent advantages of stainless steel—such as **corrosion resistance**, **high strength**, and **long service life**—this product is widely applied in residential, commercial, and industrial piping systems including water supply and drainage, HVAC, and gas pipelines.

Brand Advantage: Aquinox

As a professional stainless steel pipe fittings brand, Aquinox is committed to delivering high-quality, reliable product solutions. The brand rigorously applies strict standards in raw material selection, manufacturing processes, and quality control, ensuring that each product performs stably under various environmental conditions and meets the requirements of diverse projects.

Product Features

• Premium Stainless Steel Material: Crafted from stainless steel that complies with EN standards, offering excellent corrosion resistance and durability.
• Bridge Flow Design: The arched bridge section is engineered to reduce fluid resistance while providing flexible routing options.
• Plain End Design: Features a smooth, plain end that simplifies connections and ensures compatibility with various piping systems.
• Safety and Hygiene: Constructed from materials that meet food-grade and potable water transportation requirements, making it suitable for high-hygiene environments.

Dimensional Specifications (OD / THK)

EN Standard

Applications

• Building Water Supply and Drainage Systems: Ideal for hot, cold, and drinking water pipelines in residential and commercial buildings.
• HVAC Systems: Utilized in boiler rooms, air conditioning, and refrigeration systems for transitioning or branching heating and cooling media.
• Industrial Fluid Transfer: Applicable in the chemical, pharmaceutical, and food processing industries for transporting production water, various media, or gases.
• Gas Piping Systems: Provides safe and reliable transitions and extensions for gas pipelines, including natural gas and other gases.

O-Ring Material Characteristics and Application

The **rubber O-ring** for stainless steel press fittings is an important component which directly affects the sealing and sanitary performance of the entire system. Aquinox O-rings use **imported rubber materials** and use automatic rubber vulcanizing machine processed and produced through standard vulcanization temperature and time. Aquinox strictly implements the performance standards in **GB/T 19228.3-2012**. The hygienic performance of the O-ring used for drinking water is full in line with the **GB/T17219** standard. Besides, we can also provide O-rings that meet the **EU DVGW standard**. O-ring resistant to hot water, ageing and the additives commonly used in drinking water. There are different kinds of O-rings depending on its application.

O-Ring Compatibility Chart:

Installation Method
