Description

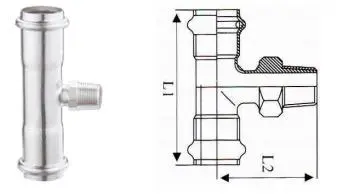

Stainless Steel Male Tee V Profile – Specifications
Dimensional Specifications – ② JIS Standard
| DN | Spec (mm) |
|---|---|
| 15×1/2”×15 | 15.88×1/2”×15.88 |
| 20×1/2”×20 | 22.20×1/2”×22.20 |
Dimensional Specifications – ③ EN Standard
| OD (mm) |
|---|
| 15 × Rp1/2″ |
| 18 × Rp1/2″ |
| 18 × Rp3/4″ |
Advantages of Fittings
- **Easy Assembly**: Practical and convenient installation.
- **Quick Installation**: Saves hours of labour.
- **Safe and Certified**: Approved for standard systems.
- **Simplified Labour**: No highly specialised personnel required.
- **Flameless Connection**: Enhances safety by requiring no open flame.
Material Characteristics and O-ring Application
The rubber **O-ring** is crucial for **sealing and hygiene**. **Aquinox O-rings** are made using **imported rubber compounds** and automated vulcanization, meeting performance standards like **GB/T 19228.3-2012** and hygienic standards for drinking water (**GB/T 17219**). **EU DVGW** compliance is available. They are resistant to hot water, ageing, and common drinking-water additives.
| Material | Color | Temperature Range | Max. Working Pressure (MPa) | Application |
|---|---|---|---|---|
| **EPDM** | Black | -40°C – 150°C | 2.5 | Hot & Cold Water, Drinking Water |
| **SI** | White | -20°C – 200°C | 2.5 | Hot & Cold Water, Drinking Water |
| **SI (Import)** | Claret | -20°C – 200°C | 2.5 | Fire, Steam, Solar |
| **NBR** | Yellow | -30°C – 120°C | 2.5 | Gas & Oil |
| **HNBR** | Green | -30°C – 180°C | 2.5 | Gas |
| **FKM** | Brown | -30°C – 250°C | 2.5 | Industrial & Chemical |
Installation Method
