Description

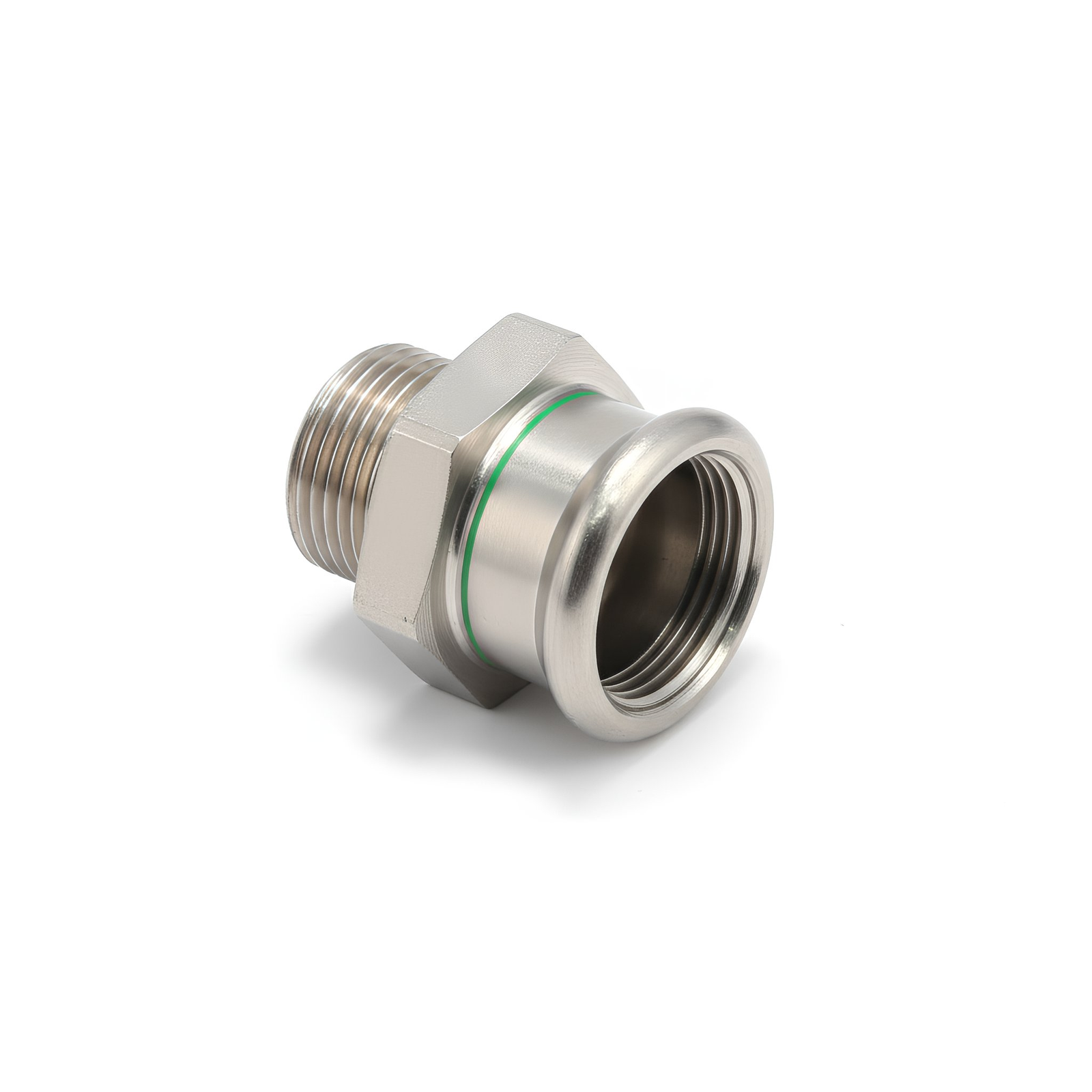

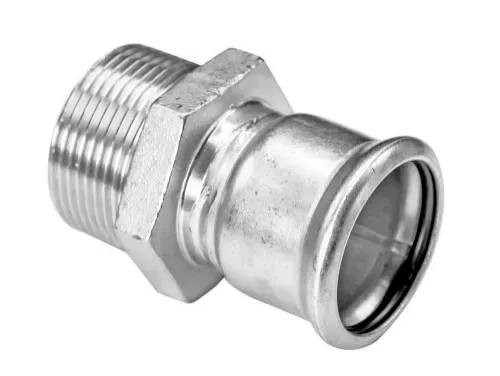

Stainless Steel Male Adapter Specification
**EN Standard Compliant** for Fitting Systems.
Dimensional Specifications (OD $\times$ Connection)
| OD $\times$ Connection (mm $\times$ Rp) |
|---|
| 15 $\times$ Rp1/2 |
| 18 $\times$ Rp1/2 |
| 18 $\times$ Rp3/4 |
| 22 $\times$ Rp1/2 |
| 22 $\times$ Rp3/4 |
| 22 $\times$ Rp1 |
| 28 $\times$ Rp3/4 |
| 28 $\times$ Rp1 |
| 35 $\times$ Rp1 |
| 35 $\times$ Rp1-1/4 |
| 42 $\times$ Rp1-1/2 |
| 54 $\times$ Rp2 |
| 76.1 $\times$ Rp2-1/2 |
| 88.9 $\times$ Rp3 |
| 108 $\times$ Rp4 |
Advantages of Fittings
- **Easy Assembly**: Practical and convenient (**efficient installation in seconds**).
- **Quick Installation**: Saves hours of labour, ideal for large projects.
- **Safe and Approved**: Guaranteed system with reliable sealing.
- **Simplified Labour**: No need for specialised personnel (just a press tool).
- **Flameless Connection**: Enhances safety by eliminating the need for naked flames.
O-Ring Material Characteristics and Application
The rubber **O-ring** for stainless steel press fittings is an important component which directly affects the sealing and sanitary performance of the entire system. **Aquinox O-rings** use imported rubber materials and are processed under controlled vulcanization conditions. They strictly comply with **GB/T 19228.3-2012**. O-rings for drinking water are fully in line with the **GB/T17219** standard; EU **DVGW** compliant options are also available. O-rings are resistant to hot water, ageing, and common drinking-water additives.
O-Ring Compatibility Chart:
| Material | Color | Temperature Range | Max. Working Pressure (MPa) | Application |
|---|---|---|---|---|
| EPDM | Black | -40°C – 150°C | 2.5 | Hot & Cold Water; Drinking Water System |
| SI | White | -20°C – 200°C | 2.5 | Hot & Cold Water; Drinking Water System |
| SI (Import) | Claret | -20°C – 200°C | 2.5 | Fire; Steam; Solar |
| NBR | Yellow | -30°C – 120°C | 2.5 | Gas & Oil |
| HNBR | Green | -30°C – 180°C | 2.5 | Gas |
| FKM | Brown | -30°C – 250°C | 2.5 | Industrial & Chemical |
Installation Method
