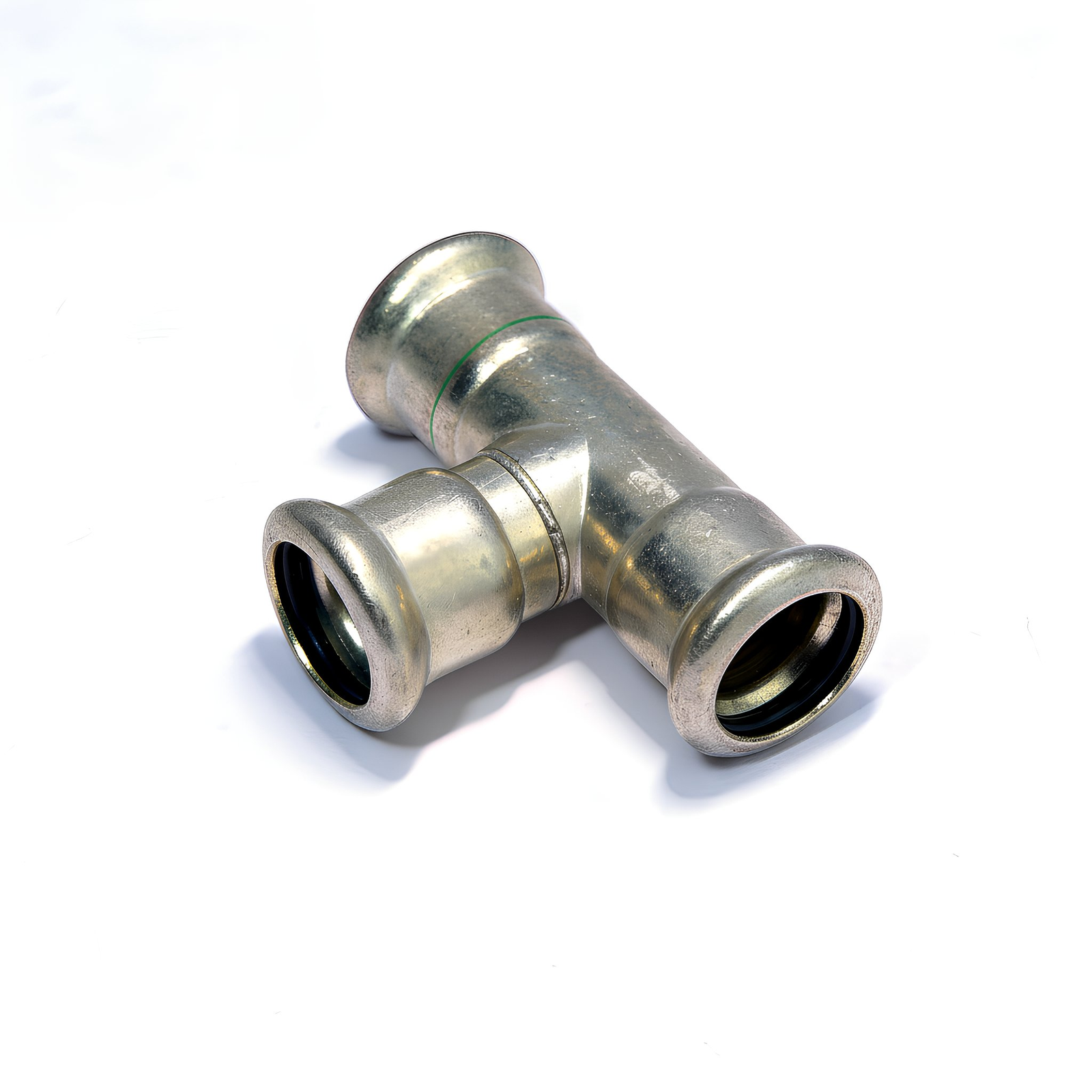

Stainless Steel Equal Tee – Product Specification
Specification
EN Standard Compliant – Stainless Steel Equal Tee
| OD (mm) | THK (mm) | L (mm) | Z (mm) |
|---|---|---|---|
| 15 | 1.50 | 69 | 26 |
| 18 | 1.50 | 72 | 29 |
| 22 | 1.50 | 79 | 35 |
| 28 | 1.50 | 90 | 42 |
| 35 | 1.50 | 104 | 48 |
| 42 | 1.50 | 122 | 56 |
| 54 | 1.50 | 146 | 70 |
| 76.1 | 2.00 | 232 | 110 |
| 88.9 | 2.00 | 262 | 126 |
| 108 | 2.00 | 312 | 154 |
Advantages of Fittings
- Easy assembly — practical and convenient (efficient installation in seconds)
- Quick installation — saves hours of labour, ideal for large projects
- Safe and approved — guaranteed system with certifications
- No specialised personnel required (just a press tool)
- Flameless connection — safer on site, no use of naked flames

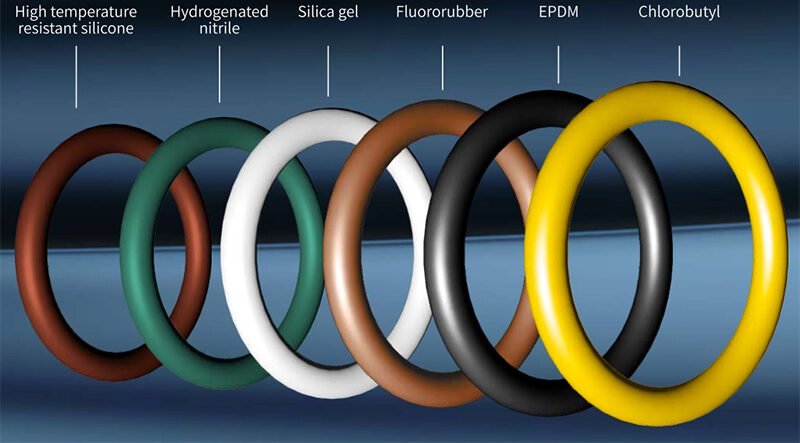

Material Characteristics and Application of O-Rings
The rubber O-ring for stainless steel press fittings directly affects sealing and sanitary performance. Aquinox O-rings use **imported rubber materials**, processed under controlled vulcanization conditions and comply with **GB/T 19228.3-2012**. Drinking water O-rings comply with **GB/T17219**; **DVGW-compliant** options are available. They resist hot water, ageing, and common drinking-water additives, making them reliable for various applications like water treatment, oil & gas, and food processing.
| Material | Color | Temperature Range | Max. Working Pressure (MPa) | Application |
|---|---|---|---|---|
| EPDM | Black | -40°C – 150°C | 2.5 | ● Hot & Cold Water ● Drinking Water |
| SI | White | -20°C – 200°C | 2.5 | ● Hot & Cold Water ● Drinking Water |
| SI (Import) | Claret | -20°C – 200°C | 2.5 | ● Fire ● Steam ● Solar |
| NBR | Yellow | -30°C – 120°C | 2.5 | ● Gas & Oil |
| HNBR | Green | -30°C – 180°C | 2.5 | ● Gas |
| FKM | Brown | -30°C – 250°C | 2.5 | ● Industrial & Chemical |
