Description

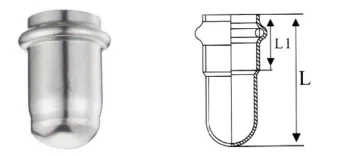

Aquinox Stainless Steel End Cap – V Profile
The **Aquinox Stainless Steel End Cap** features a **V Profile** design. It is **corrosion-resistant**, **precision-engineered**, and perfectly suited for various industrial applications. Custom sizes are also available upon request.
Specification: JIS / EN Standards
Dimensional Specifications – ② JIS Standard
| DN | Spec (mm) | THK (mm) |
|---|---|---|
| 15 | 15.88 | 0.80 |
| 20 | 22.20 | 1.00 |
| 25 | 28.60 | 1.00 |
| 32 | 34.00 | 1.20 |
| 40 | 42.70 | 1.20 |
| 50 | 48.60 | 1.20 |
| 65 | 76.10 | 2.00 |
| 80 | 88.90 | 2.00 |
| 100 | 108.00 | 2.00 |
Dimensional Specifications – ③ EN Standard
| OD (mm) | THK (mm) |
|---|---|
| 15 | 1.50 |
| 18 | 1.50 |
| 22 | 1.50 |
| 28 | 1.50 |
| 35 | 1.50 |
| 42 | 1.50 |
| 54 | 1.50 |
| 76.1 | 2.00 |
| 88.9 | 2.00 |
| 108 | 2.00 |
Advantages of Fittings
- **Easy Assembly**: Practical and efficient installation process.
- **Quick Installation**: Significant labour saving and time efficiency.
- **Safe and Certified**: Provides a guaranteed, high-integrity connection.
- **Simplified Labour**: No need for highly specialised personnel.
- **Flameless Connection**: Enhances site safety by eliminating the need for open flames.

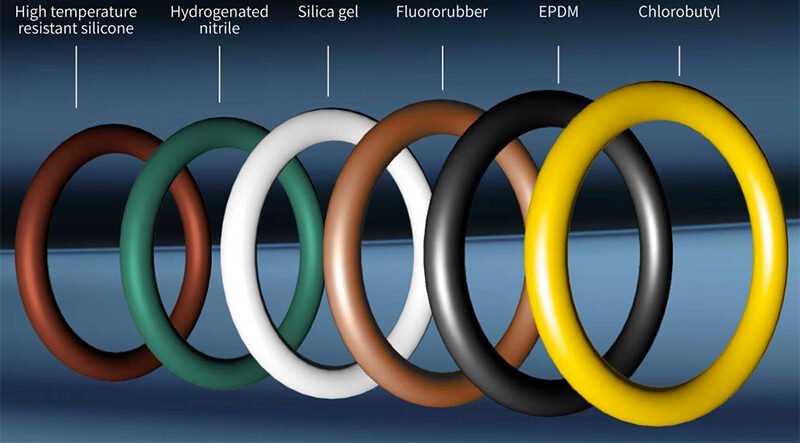

Material Characteristics & O-rings Compatibility
**Aquinox O-rings** are crucial for sealing and hygiene. They are made from **imported rubber compounds** using automated vulcanization to comply with **GB/T 19228.3-2012**. Drinking water grades meet **GB/T17219** standards, with **EU DVGW** options available. These O-rings are built to resist hot water, ageing, and common water additives.
