Description

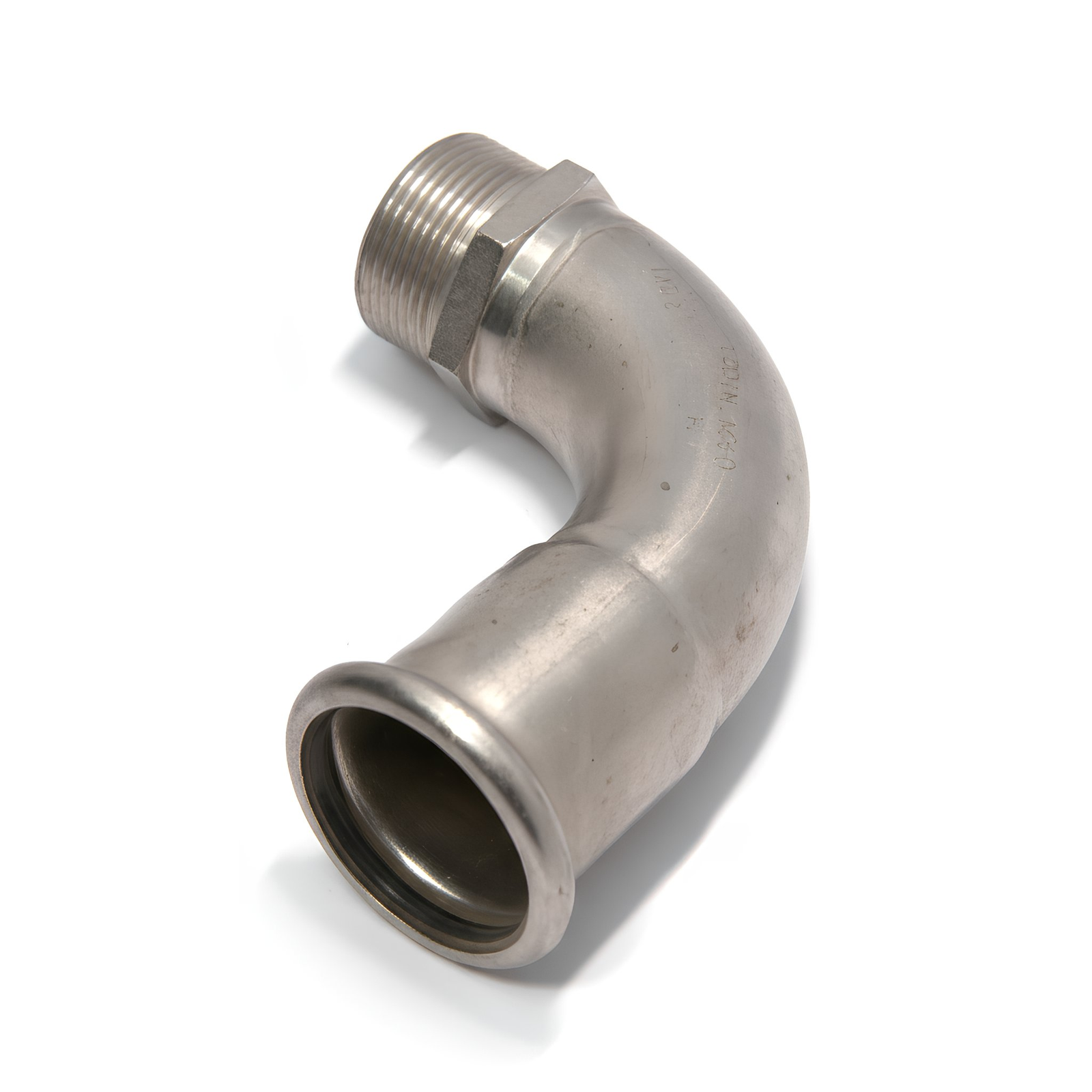

Stainless Steel 90° Male Elbow (M Profile)
Specification
EN Standard Compliant – 90 Degree Press-Fit Male Elbow
| OD × Thread (mm) | L (mm) | Z (mm) |
|---|---|---|
| 15 × G1/2 | 44.5 | 22 |
| 18 × G1/2 | 49.5 | 26.5 |
| 18 × G3/4 | 54.5 | 24 |
| 22 × G1/2 | 54.5 | 31.5 |
| 22 × G3/4 | 54.5 | 31.5 |
| 28 × G1/2 | 64 | 39 |
| 35 × G1-1/4 | 74 | 45 |
| 42 × G1-1/2 | 88 | 57 |
| 54 × G2 | 106 | 70 |
Advantages of Fittings
- Easy assembly — practical and convenient (highly efficient)
- Quick installation — saves hours of labour on site
- Safe and approved — guarantees a reliable system performance
- No need for specialised personnel (minimal training required)
- Flameless connection — safer on site, no fire hazards
Material Characteristics and Application of O-Rings
The rubber **O-ring** is a critical component directly affecting the sealing and sanitary performance of stainless steel press fittings. Aquinox O-rings use **imported rubber materials**, processed under controlled vulcanization conditions and comply with **GB/T 19228.3-2012**. O-rings for drinking water also comply with **GB/T 17219**; **DVGW-compliant** options are available. They resist hot water, ageing, and common drinking-water additives. Different compounds are available depending on the specific application requirements.
| Material | Color | Temperature Range | Max. Working Pressure (MPa) | Application |
|---|---|---|---|---|
| EPDM | Black | -40°C – 150°C | 2.5 | ● Hot & Cold Water ● Drinking Water System |
| SI | White | -20°C – 200°C | 2.5 | ● Hot & Cold Water ● Drinking Water System |
| SI (Import) | Claret | -20°C – 200°C | 2.5 | ● Fire ● Steam ● Solar |
| NBR | Yellow | -30°C – 120°C | 2.5 | ● Gas & Oil |
| HNBR | Green | -30°C – 180°C | 2.5 | ● Gas |
| FKM | Brown | -30°C – 250°C | 2.5 | ● Industrial & Chemical |
Press-Fit Installation Method
