Plain End Elbow 90° M Profile – Stainless Steel

Product Overview

The **Stainless Steel 90° Elbow** features a **Plain End M Profile** on both sides, making it a perfect pipe connector for systems requiring a **right-angle change in direction** using flameless press technology. This fitting is an advanced connection type suitable for **potable water, tap water, heating, steam, industrial oil, and gas pipe systems**.

Technical Specifications (EN Standard)

OD (mm)	THK (mm)	L (mm)	Z (mm)
15	1.50	44.5	22
18	1.50	49.5	26.5
22	1.50	54.5	31.5
28	1.50	64	39
35	1.50	74	45
42	1.50	90	56
54	1.50	112	73
76.1	2.00	150	95
88.9	2.00	174	111
108	2.00	215	138

Advantages of Fittings

**Easy Assembly**: Practical, convenient, and highly efficient.
**Quick Installation**: Saves significant hours of labour on site.
**Safe and Approved**: Provides a guaranteed, reliable system.
**Simplified Labour**: No need for specialised welding personnel or skills.
**Flameless Connection**: Ensures a safer installation environment with no naked flames.

O-Ring Material Characteristics and Application

The **rubber O-ring** is crucial for the sealing and sanitary performance of the entire press-fit system. Aquinox O-rings are made from **imported rubber compounds** and precision vulcanized using automatic machines. They strictly comply with **GB/T 19228.3-2012**, and drinking water O-rings meet **GB/T17219 standards**. These seals are resistant to hot water, ageing, and common drinking water additives. Different compound types are available for diverse applications.

Material	Color	Temperature Range	Max. Working Pressure (MPa)	Application
EPDM	Black	-40°C – 150°C	2.5	● Hot & Cold Water ● Drinking Water System
SI	White	-20°C – 200°C	2.5	● Hot & Cold Water ● Drinking Water System
SI (Import)	Claret	-20°C – 200°C	2.5	● Fire ● Steam ● Solar
NBR	Yellow	-30°C – 120°C	2.5	● Gas & Oil
HNBR	Green	-30°C – 180°C	2.5	● Gas
FKM	Brown	-30°C – 250°C	2.5	● Industrial & Chemical

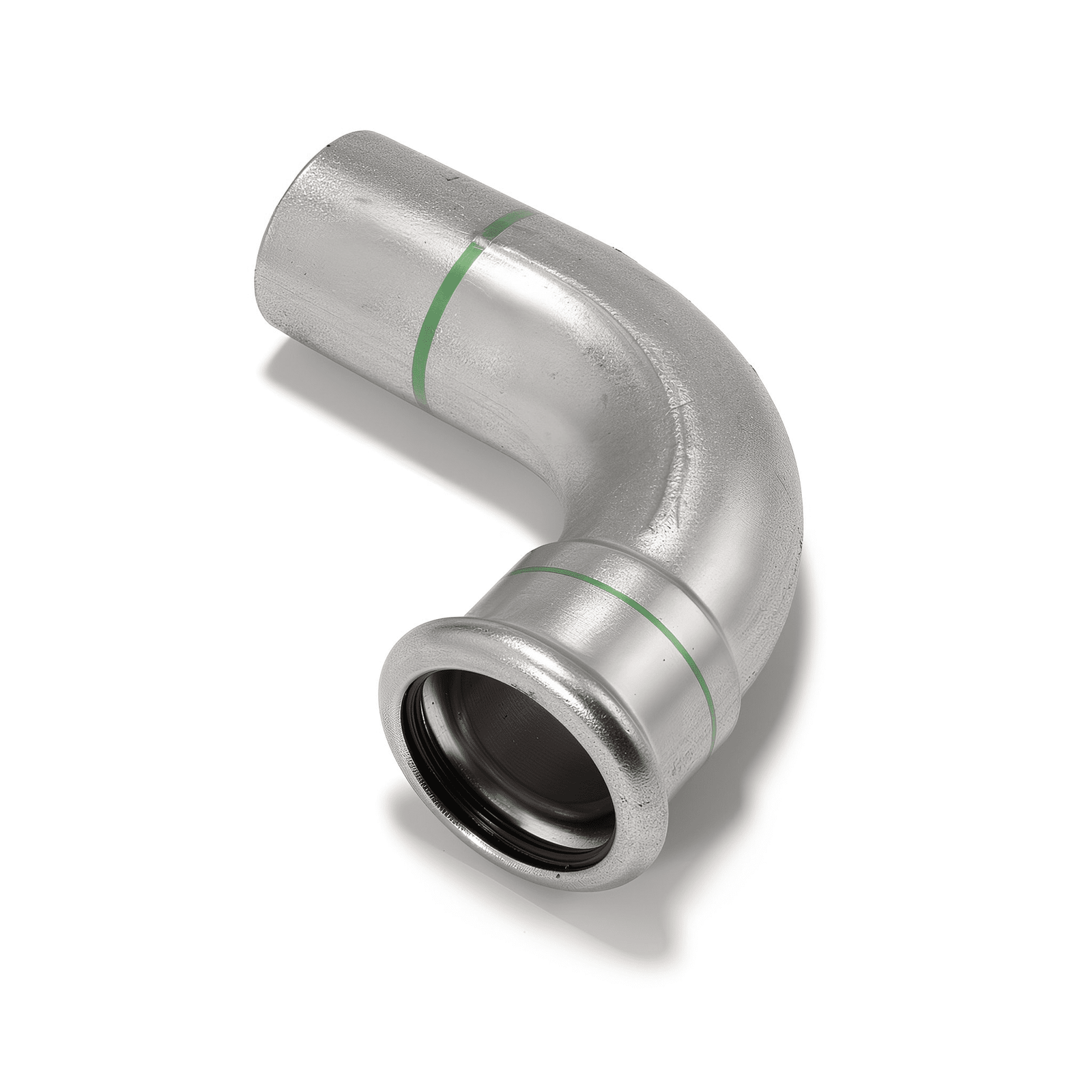

Stainless Steel 90° Elbow with Plain End
